Right Angle Units - Lenze GSS Helical-Worm Gearbox


Low noise, robust and versatile.

The helical-worm gearbox is a particularly low-noise drive component.

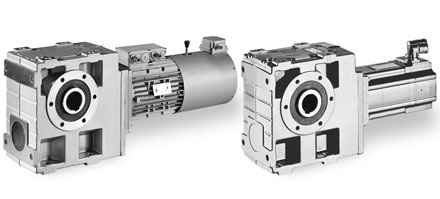

The Lenze GSS helical-worm gearbox is a compact drive unit in combination with three-phase AC and servo motors, they are extremely versatile. They have a 2- and 3-stage design and can achieve a torque of up to 1250 Nm and a ratio of up to i=1847.

Drive Package versions in conjunction with the decentralised Inverter Drives 8400 motec cover a power range of up to 7.5 kW.

Lenze GSS helical-worm gearbox highlights:

  • 2-stage and 3-stage gearboxes
  • Hollow shaft with keyway or shrink disc
  • Solid shaft with keyway
  • Foot or flange mounting
  • Torque plate, including rubber buffer

For more help on the Lenze GSS helical-worm gearbox please call Transdrive
