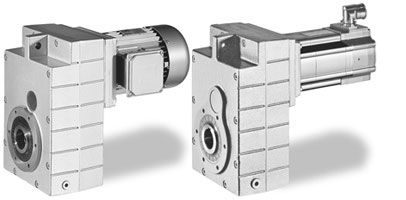

In-Line Units(axial units) - Lenze GFL shaft-mounted helical gearbox


Space-saving and powerful.

The Lenze GFL shaft-mounted helical gearbox in combination with three-phase AC and servo motors, our shaft-mounted helical gearboxes represent a compact, effective drive unit.

A low toothing backlash guarantees maximum accuracy. In addition, they can also distribute the power output and torque via an output shaft on both sides. The gearboxes are available in a 2- and 3-stage design with a torque of up to 11,615 Nm and a ratio of up to i=856.

Drive Package versions in conjunction with the decentralised Inverter Drives 8400 motec cover a power range of up to 7.5 kW.

Lenze GFL shaft-mounted helical gearbox highlights

  • 2-stage and 3-stage gearboxes
  • Hollow shaft with keyway or shrink discs
  • Solid shaft with keyway
  • Foot or flange mounting
  • Torque plate, including rubber buffer

For more help on the Lenze GFL shaft-mounted helical gearbox please call Transdrive.
